产品展示

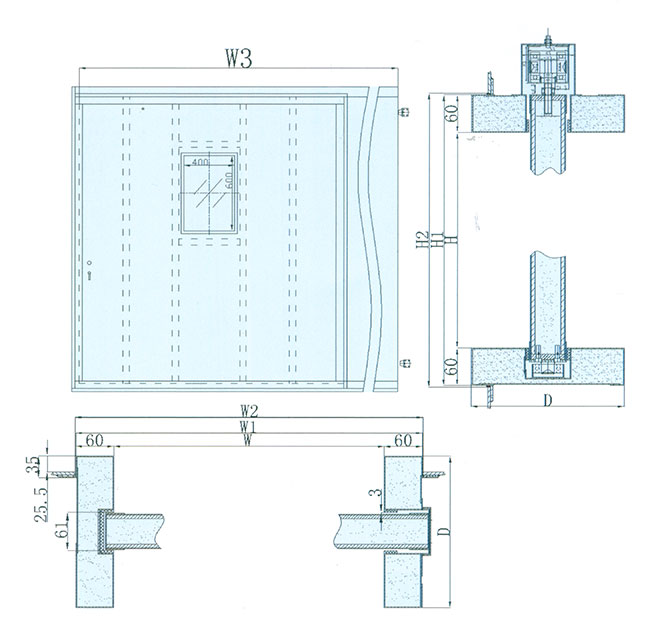

A60整体式防火移门
WX-XF-07-00适用于具有A级分割要求，防火等级为A60要求的围壁处所。
| 通孔尺寸WxH(mm) | 船壁开口尺寸W1xH1(mm) | 门框外形尺寸W2xH2(mm) | 导轨长度W3mm |
| 1200x600 | 1325x725 | 1320x720 | 1307 |
| 1400x600 | 1525x725 | 1520x720 | 1307 |
| 1500x600 | 1625x725 | 1620x720 | 1307 |
| 1600x600 | 1725x725 | 1720x720 | 1307 |
| 1600x700 | 1725x825 | 1720x720 | 1507 |
| 1700x600 | 1825x725 | 1820x720 | 1307 |
| 1700x700 | 1825x825 | 1820x820 | 1507 |
| 1800x600 | 1925x725 | 1920x720 | 1307 |
| 1800x700 | 1925x825 | 1920x820 | 1507 |
| 1800x800 | 1925x925 | 1920x920 | 1707 |
| 2200x2000 | 2325x2125 | 2320x2120 | 4137 |
