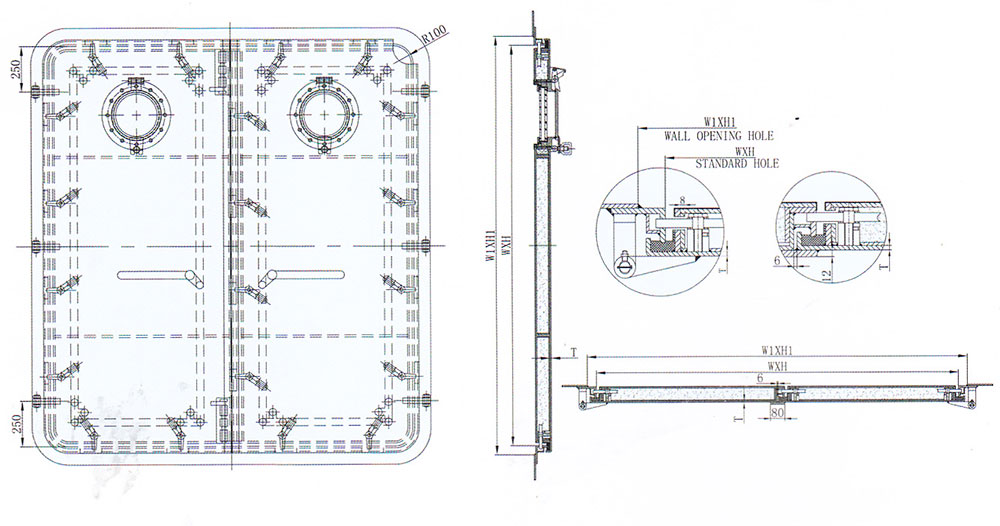

XF028-B-00

适用于具有A级分割要求，防火等级为A60级要求的围壁处所，门密性满足风雨密要求。

通孔尺寸HxW	围壁开口尺寸H1xW1	门板厚度T	轧扣数量
1200x1200	1300x1300xR150	6、8	10
1400x1200	1500x1300xR150	6、8	10
1500x1400	1600x1500xR150	6、8	10
1600x1400	1700x1500xR150	6、8	10
1600x1600	1700x1700xR150	6、8	10
1700x1600	1800x1700xR150	8	13
1700x1800	1800x1900xR150	8	13
1800x1600	1900x1700xR150	8	13
1800x1700	1900x1800xR150	8	13
1800x1800	1900x1900xR150	8	13
2200x2000	2300x2100xR1500	8	20

标记示例：

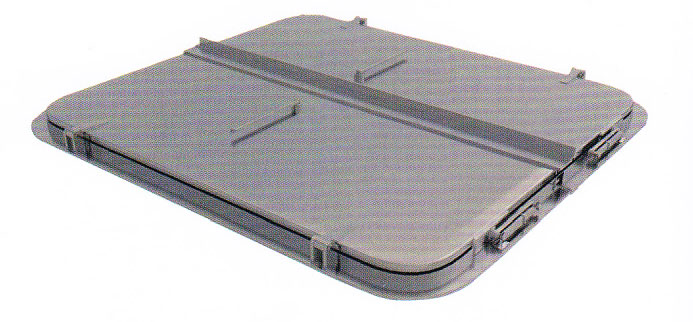

通孔尺寸为2200x2000mm的A60级钢质钢质双开风雨密门：
A60级钢质防火双扇风雨密门2200x2000 XF028-B-00
