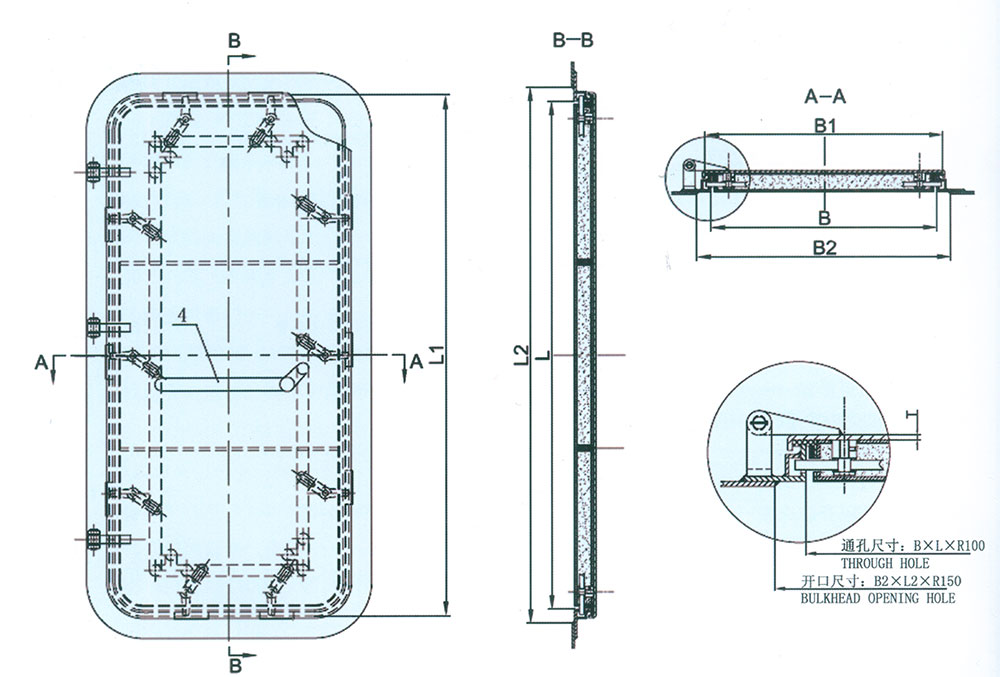

A60 Steel watertight door

XF028-A-00
Applicable for accommodations with requirep fire rating A60,meet watertight requirements.

clear size LxB	leaf size L1XB1	opening size of bulkhead L2xB2	leaf thickness T	qty of clips
1200x600	1245x645	1300x700xR150	6、8	6
1400x600	1445x645	1500x700xR150	6、8	6
1500x600	1545x645	1600x700xR150	6、8	6
1600x600	1645x645	1700x700xR150	8	6
1700x600	1745x645	1800x700xR150	8	8
1800x600	1845x645	1900x700xR150	8	8
1700x700	1745x745	1800x800xR150	8	8
1700x800	1745x845	1800x900xR150	8	8
1800x700	1845x745	1900x800xR150	8	8
1800x800	1745x845	1900x900xR150	8	10

water pressure：0.03-0.05Mpa。
Identification example：
A60 steel watertight door with clear size of 1800x800mm:A60 steel watertight door 1800X800 XF028-A-00
