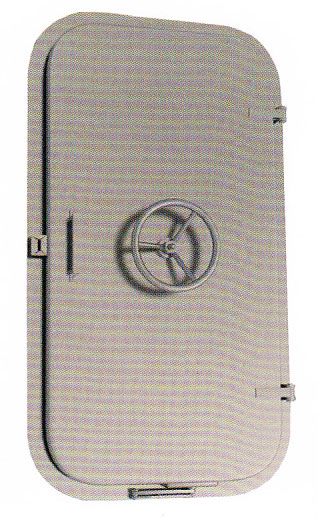

A60 Steel pressure watertight door
Apllication for accommodations with required fire rating 60,meet watertight requipments.

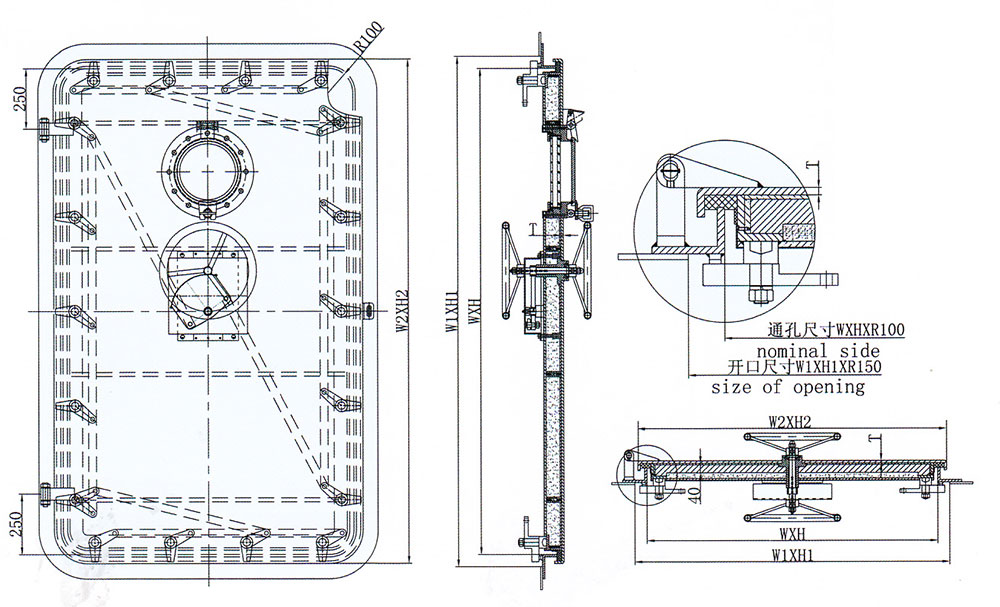

| clear size HxW | opening size of bulkhead | leaf size H1xW1 | leaf thickness T | qty of clips |
| 1200x600 | 1275x675 | 1300x700xR150 | 8 | 6 |
| 1400x600 | 1475x675 | 1500x700xR150 | 8 | 6 |
| 1500x600 | 1575x675 | 1600x700xR150 | 8 | 8 |
| 1600x600 | 1675x675 | 1700x700xR150 | 8 | 8 |
| 1600x700 | 1675x775 | 1700x800xR150 | 8 | 8 |
| 1700x600 | 1775x675 | 1800x700xR150 | 8 | 10 |
| 1700x700 | 1775x775 | 1800x800xR150 | 8 | 10 |
| 1800x600 | 1875x675 | 1900x700xR150 | 8 | 10 |
| 1800x700 | 1875x775 | 1900x800xR150 | 8 | 12 |
| 1800x800 | 1875x875 | 1900x900xR150 | 8 | 12 |
| 2000x1200 | 2075x1275 | 2100x1300xR1500 | 8 | 18 |
Identification example：
A60 steel watertight door with clear size of 2000x1200mm:A60 steel watertight door 2000x1200 XF028-A-00-1
