A60 Hydraulic sliding watertight door

WX-XF-06-00
The door is suitable for the special ship engine room leading to the shaft tunnel and the main deck of the horizontal movement of the A60-class marine hydraulic sliding watertight doors.

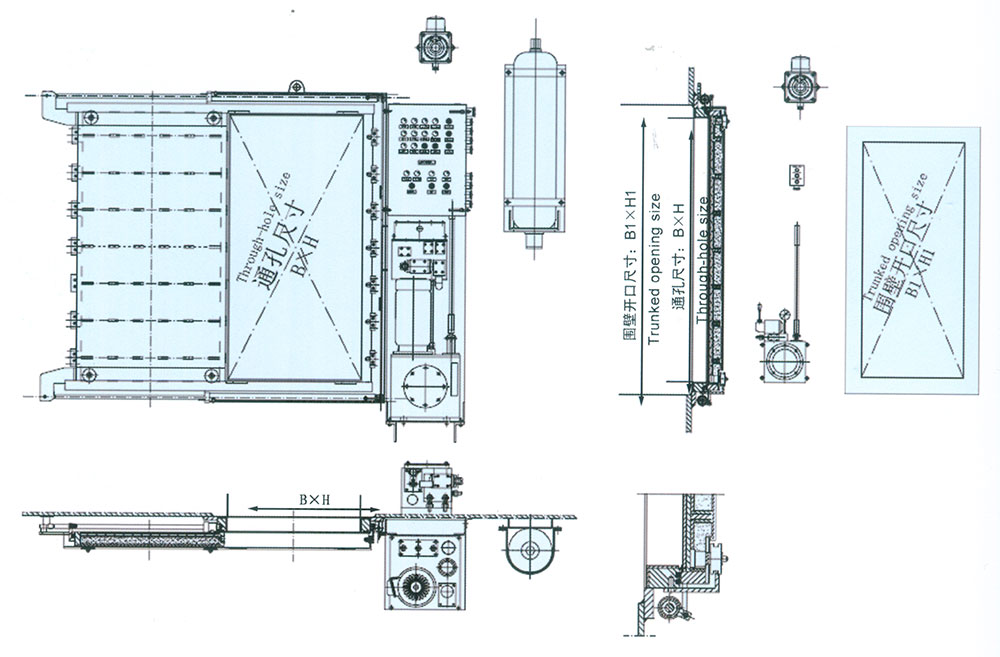

nominal size BxH	opening size of bulkhead B1xH1	opening direction
600x1200	800x1400	左 右
600x1400	800x1600
700x1400	900x1600
700x1500	900x1700
700x1600	900x1800
800x1800	1000x2000
900x1800	1100x2000
1000x2000	1200x2200

Identification example:
A60 hydraulic sliding watertight door with clear size of 1000x2000mm,left opening:A60 hydraulic sliding watertight door 1000x2000L WX-XF-06-00
