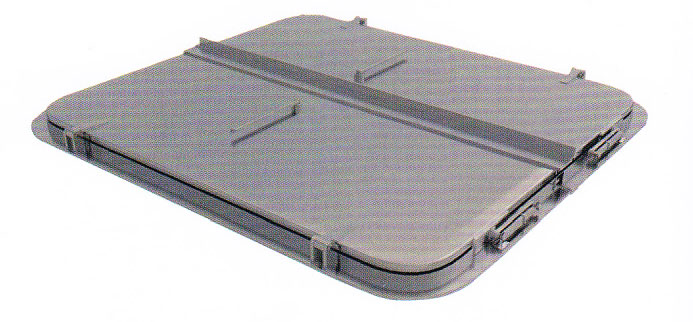

XF028-B-00
Applicable for accommodations with required fire rating A60,meet watertight requirements.

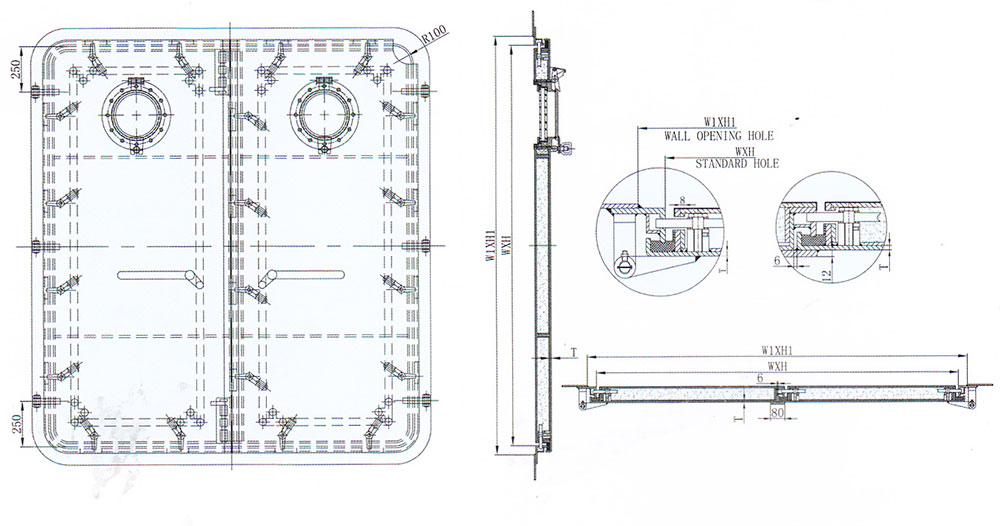

clear size HxW	opening size of bulkhead H1xW1	leaf thinkness T	qty of clips
1200x1200	1300x1300xR150	6、8	10
1400x1200	1500x1300xR150	6、8	10
1500x1400	1600x1500xR150	6、8	10
1600x1400	1700x1500xR150	6、8	10
1600x1600	1700x1700xR150	6、8	10
1700x1600	1800x1700xR150	8	13
1700x1800	1800x1900xR150	8	13
1800x1600	1900x1700xR150	8	13
1800x1700	1900x1800xR150	8	13
1800x1800	1900x1900xR150	8	13
2200x2000	2300x2100xR1500	8	20

Identification example:
Class A60 steel double-leaf waterlight door with clear size of 2200x2000mm:Class A60 steel double-leaf watertight door 2200x2000 XF028-B-00
