XF002-03-NOW

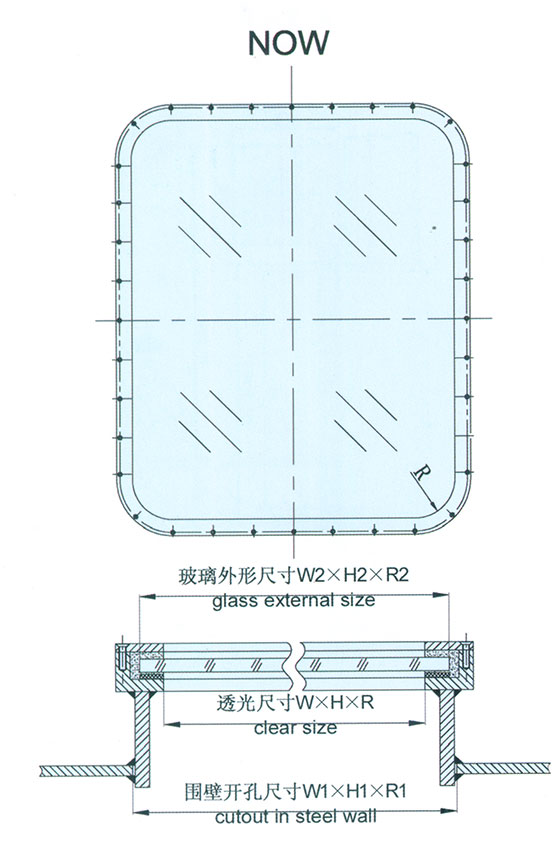

WxHxR clear size		W1xH1xR1 opening size of bulkhead		W2xH2xR2 glass external size		glass thickness
300x425		352x477		340x465		10
355x500	R50	407x552	R76	395x540	R70	10
400x560		452x612		440x600		10
450x630	R100	502x682	R126	490x670	R120	10
500x710		552x762		540x750		12
560x800		612x852		600x840		12
600x800		652x852		640x840		12
800x710		840x750		852x762		15
900x800		940x840		952x852		15
1200x630		1240x670		1252x682		19
1200x800		1240x840		1252x852		19
1500x800		1540x840		1552x852		19
1800x1000		1840x1440		1852x1052		19
1800x1200		1840x1240		1852x1252		19
2000x1400		2040x1440		2052x1452		19

Identification example:

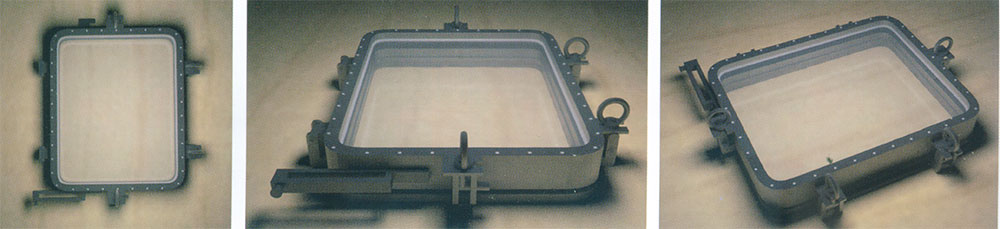

Class A0 fireproof rectangular window, with clear size of 600x800mm: Class A0
fireproof rectangular window 600x800 XF002-03-NOW
