XF002-03-W

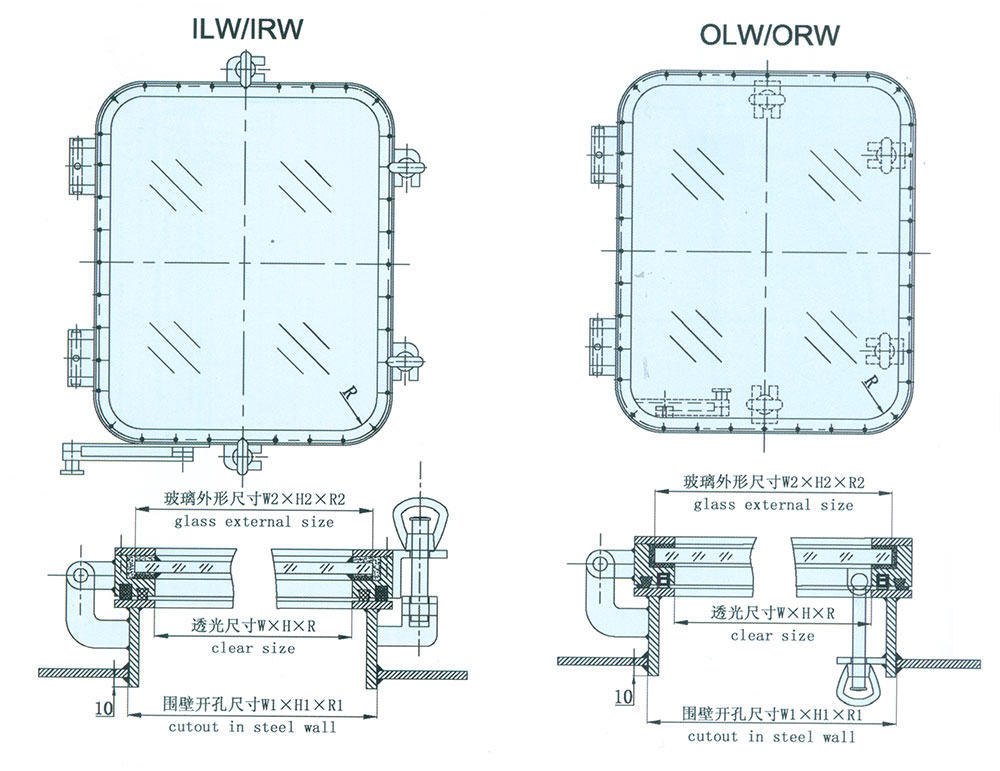

Clear size WxHxR		opening size of bulkhead W1xH1xR1		glass external size W2xH2xR2		glass thickness
300x425	R50	352x477	R76	340x465	R70	10
355x500		407x552		395x540		10
400x560		452x612		440x600		10
450x630	R100	502x682	R126	490x670	R120	10
500x710		552x762		540x750		12
560x800		612x852		600x840		12
600x800		652x852		640x840		12

Identification example:
Class A0 welded fireproof rectangular window, left inwards opening, clear size 600x800mm:
Class A0 welded fireproof rectangular window 600x800 XF002-03-W
